Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant

Brand Name : ZTIC

Model Number : LKY series

Certification : ISO/CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 30 days

Packaging Details : Standard shipping packaging

Product name : Mobile Crushing Plant

After sale Service : 1 Year Warrenty

Usage : Energy & Mining

Processed Materials : Stone Ore

Weight(t) : 35-85

The Maximum Feeding Size(mm) : 500-940

Discharge Opening Size(mm) : 65-275

Capacity(t/h) : 90-650

Genset(optional)(kw) : 180-440

Contact Now

high performance mobile crusher plant Various models Impact Crusher Jaw Crusher

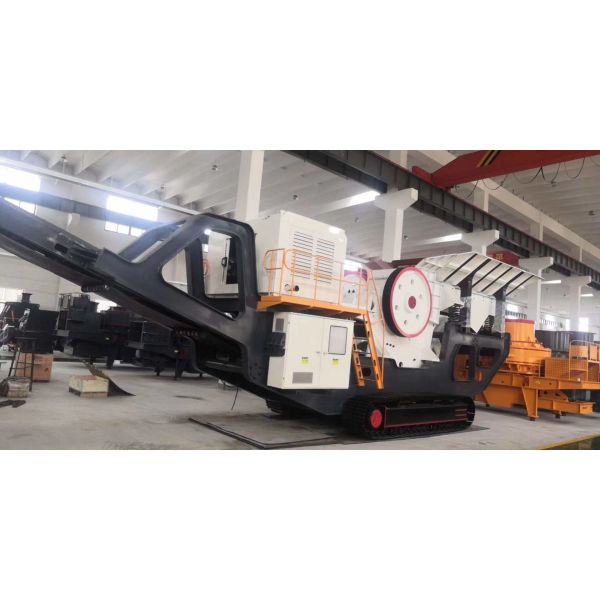

LKY series mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.

Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant

Mobile Impact Crusher

Technical Data//Model LCI1214Ⅱ LCI1315Ⅱ LCI1318Ⅱ
Transportation size(mm) 11900*2650*3850 13500*2780*4150 15200*2950*4300
Weight(t) 41 52 61
Tire Configuration Dualaxial Triaxial Triaxial
Impact Crusher PFW-1214Ⅱ PFW-1315Ⅱ PFW-1318Ⅱ
The Maximum Feeding Size(mm) 500 600 700
Capacity(t/h) 130~200 180~320 240~400
Vibrating Feeder GZD960*3800 GZD1100*4200 GZD1300*4900
Main Belt Conveyor B800*8.5M B1000*9M B1200*9.5M
Side Belt Conveyor(optional) B420*3M B500*3.5M B650*4M
Electric control standard Control box+control panel Control box+control panel Control box+control panel
optional Control box+LCD Control box+LCD Control box+LCD
Hydraulic leg standard 4 4 4
optional 2 2 2
Hydraulic cyclinder standard 4 4 4
optional 5 5 5
Genset(optional)(kw) 270 380 440
Iron Separator(optional)(kw) RCYD(C)-8 RCYD(C)-10 RCYD(C)-12
Note:Any change of technical data shall not be advised additionally.

Mobile Primary Jaw Crusher

Technical Data//Model LYCJ69 LYCJ750 LYCJ912 LYCJ860 LYCJ1100
Transportation size(mm) 11900*2550*3650 13500*2550*4300 15200*2950*4450 14600*2750*4350 15200*2800*4900
Weight(t) 35 52 80 59 85
Tire Configuration Dualaxial Triaxial Triaxial Triaxial Triaxial
Jaw Crusher PE600*900 PE750*1060 PE900*1200 PEW860 PEW1100
The Maximum Feeding Size(mm) 480 630 750 730 940
Discharge Opening Size(mm) 65~160 80~140 100~200 75~225 150~275
Capacity(t/h) 90~180 110~320 220~450 150~500 300~650
Vibrating Feeder GZD960*3800 GZD1100*4200 GZD1300*4900 GZD1300*4900 GZD1300*4900
Main Belt Conveyor B800*8.5M B1000*9M B1200*9.5M B1200*9.5M B1200*9.5M
Side Belt Conveyor(optional) B450*3M B500*3.5M B650*4M B650*4M B650*4M
Electric control standard Control box+control panel Control box+control panel Control box+control panel Control box+control panel Control box+control panel
optional Control box+LCD Control box+LCD Control box+LCD Control box+LCD Control box+LCD
Hydraulic leg standard 4 4 4 4 4
optional 2 2 2 2 2
Hydraulic cyclinder standard 4 4 4 4 4
optional 5 5 5 5 5
Genset(optional)(kw) 180 250 250 270 380
Iron Separator(optional)(kw) RCYD(C)-8 RCYD(C)-10 RCYD(C)-12 RCYD(C)-12 RCYD(C)-12
Note:Any change of technical data shall not be advised additionally.
