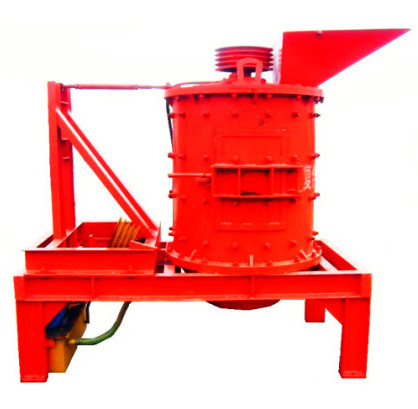

PFL Series Vertical Compound Crusher Direct Supply From Factory

Name: PFL Series Vertical Compound Crusher Direct Supply From Factory
Brand: ZTIC
Price: 1 USD

Quality PFL Series Vertical Compound Crusher Direct Supply From Factory for sale

Brand Name : ZTIC

Model Number : Vertical Compound Crusher

Certification : ISO/CE

Place of Origin : Henan, China

MOQ : 1 Set/Sets

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 5000 Set/Sets per Year

Condition : New

Application : iron ore, sandstone, gypsum

Warranty : 12 month

Name : Vertical Compound Crusher

Type : Stone Crusher Machine

Contact Now

Stone Crusher Machine PFL Series Vertical Compound Crusher Direct Supply From Factory

1. Application

Also used in iron ore, sandstone, gypsum, high furnace slag, lump coal and other hard ore crushing.

2. Working principle

The machine is mainly composed of frame, rotor, hammer head, lining plate, inlet, outlet and other parts. The motor drives the rotor by triangular belt rotation, so that the hammer head fixed on the rotor runs at high speed, so that the material and hammer head and inner wall lining plate fully impact, thus crushing the material in the crushing chamber.

3. Structural Features

The machine is mainly composed of frame, rotor, hammer head, lining plate, feed port, discharge port and other components. It has the characteristics of large crushing ratio, small energy consumption, stable operation, simple structure, convenient operation and maintenance, etc.

4. Technical parameters

Model	Cylinder diameter(mm)	Productivity(t/h)	Feed size(mm)	Discharge size(mm)	Motor power(kw)	Dimensions L×W×H(mm)
PFL-750	750	10-20	<100	<3-5 60-90%	30-45	2100×1200×1700
PFL-1000	1000	20-40	<120	<3-5 60-90%	55	2600×1400×1900
PFL-1250	1250	40-70	<150	<3-5 60-90%	90	2800×1600×2100
PFL-1500	1500	70-100	<180	<3-5 60-90%	132	3100×1900×2200
PFL-1750	1750	90-130	<200	<3-5 60-90%	160	3710×2360×2390
PFL-2000	2000	100-160	<220	<3-5 60-90%	185	4100×2660×2620

PFL Series Vertical Compound Crusher Direct Supply From Factory
