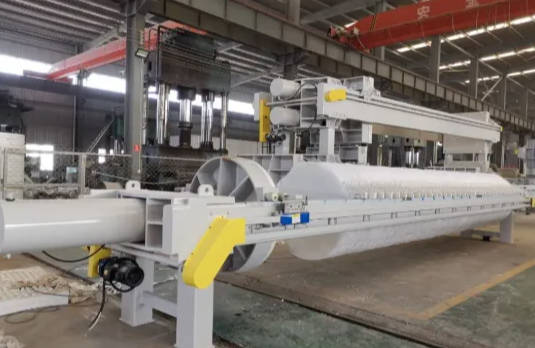

Solid-Liquid Separation Filtration High Pressure Round Plate Filter Press
The circular plate filter press is a highly efficient solid-liquid separation device. Its core principle is to utilize the pressure differential across the filter cloth to trap solid particles in the liquid feed within the filter chamber, forming a filter cake, while the liquid passes through the cloth and is discharged. The equipment primarily consists of a frame, filter plates, a compression system, and an electrical control system.
It’s mainly used for solid-liquid separation in stone waste water, ceramics, kaolin, building materials industries. High filter pressure, low water content rate of filter cakes.
Product Advantages:
Efficient Dehydration: High pressure extrusion significantly reduces the moisture content of the filter cake, making it suitable for high-viscosity materials.
Stable Operation: The circular structure distributes force evenly, reducing the risk of deformation and improving sealing.
High Level of Automation: Supports fully automated plate pulling, liquid collection, and washing processes, reducing manual intervention.
High Corrosion Resistance: Optional filter plate materials are available to adapt to various acid and alkaline environments.
Product Parameters of Ore Dressing Equipment
| Model | Area(m²) | Plate size(mm) | Cake thickness(mm) | Filter
chamber volume(L) | Plate Qty(pcs) | Filtration pressure(Mpa) | Weight(Kg) | L*W*H(mm) | Foundation Sizel(mm) |
| L | B | D |
| XMY40/φ800-25 | 40 | φ800 | 25 | 499 | 40 | 1.0-3.0 | 4554 | 4300×1100×1060 | 3500 | 530 | 1050 |
| XMY50/φ800-25 | 50 | 621 | 50 | 5150 | 4820×1100×1060 | 4020 |
| XMY60/φ800-25 | 60 | 753 | 60 | 9710 | 5340×1100×1060 | 4540 |
| XMY70/Φ800-25 | 70 | 875 | 70 | 5760 | 5860×1100×1060 | 5580 |
| XMY80/φ800-25 | 80 | 1000 | 80 | 6860 | 6200×1100×1060 | 5660 |
| XMY80/φ1000-30 | 80 | φ1000 | 30 | 1210 | 59 | 1.0-3.0 | 6652 | 7254×1311×1399 | 5857 | 680 | 1400 |
Product Display of Ore Dressing Equipment
